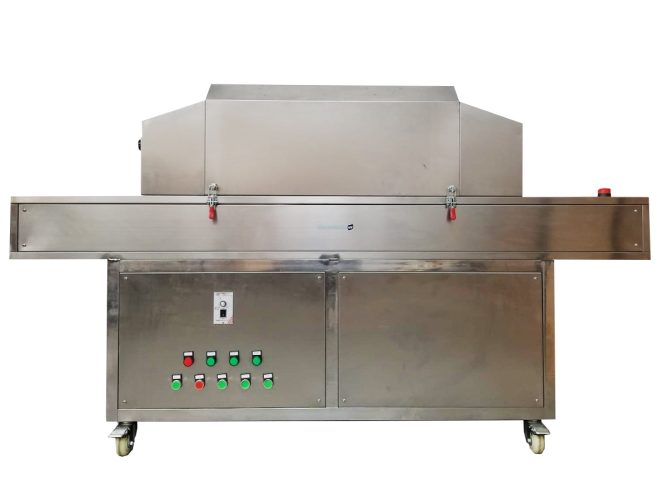

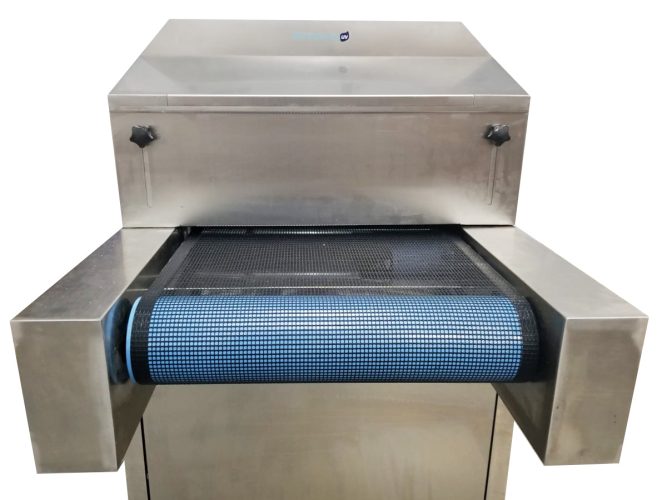

UVC Belt Tunnel Conveyor
Overview:
A high-efficiency UVC tunnel system with a food-grade conveyor belt, ideal for surface sterilization in food processing, pharmaceutical, and packaging industries. Ensures rapid disinfection with minimal downtime.
Technical Specifications:
- Material: Food-grade PU/PVC belt, SS304 enclosure
- UV Source: UVC lamps at 254 nm wavelength
- Lamp Life: 9,000 – 12,000 hours
- Sterilization Intensity: 30–50 mJ/cm² (customizable)
- Belt Speed: 0.5 – 15 m/min (adjustable via VFD)
- Power Supply: 230V AC / 50Hz
- Dimensions: Customizable based on application
- Safety Features: Interlocked doors, UV shielding, emergency stop
Use Cases:
- Surface sterilization of packaged foods
- Disinfection of pharma trays, blister packs, and cartons
- Sanitization of cosmetics & packaging materials
Efficacy:
- Up to 99.99% microbial reduction (bacteria, virus, fungi)
- Validated with food-safe and pharma-safe standards
Customization Options:
- Adjustable UV dosage & belt width
- Different belt materials (PU/PVC, SS wire mesh)
- Integration with existing production lines
📦 Applications: Food, Pharma, Packaging
⚡ Sterilization: 30–50 mJ/cm²
🚀 Speed: 0.5–15 m/min
🛡️ Safety: UV shielding
⚙️ Customization: Belt width, dosage, integration
Disinfection Process
- 🚚 Transport: Products move through the UV-C tunnel on a conveyor belt at a controlled speed.
- 💡 UV-C Tubes: High-efficiency UV-C tubes (254 nm) disinfect products.
- 🧬 DNA Inactivation: The wavelength alters the DNA of microorganisms, preventing reproduction.
- ✅ Result: Bacteria & viruses are destroyed → products exit in microbiologically safe condition.
Degree of Radiation
UV-C Tunnel – 360° Disinfection
- ✅ Tubes installed on all sides of the tunnel.
- ⚡ Complete 360° coverage of the product surface.
- ⏱️ Microorganisms destroyed within seconds.
UV-C Cover – Top/Partial Disinfection
- 🌟 Designed for cases where 360° disinfection is not required.
- 💡 Tubes irradiate from front, back, and top.
- ⚙️ Cost-effective alternative for suitable applications.
Adaptation to Products
Thanks to the modular design, UV-C systems can be precisely adapted to different requirements:
- 🎯 Disinfection Level – adjust intensity as per microbial load.
- ⏩ Process Speed – optimized for throughput.
- 📏 Bandwidth – conveyor width customizable.
- 📐 Passage Height – height adjusted for product size.
- 🔌 Power – scalable UV-C performance.
Advantages
- 📦 Perfect adaptation to product.
- ⚡ Optimized UV-C performance for maximum efficiency.
- 🔒 Most effective disinfection of surfaces.
- 🏭 Reliable, chemical-free, high-efficiency sterilization.
Protect your staff and customers with safe, chemical-free sterilization.
Delivering world-class UV solutions for hospitals, industries, and homes.
