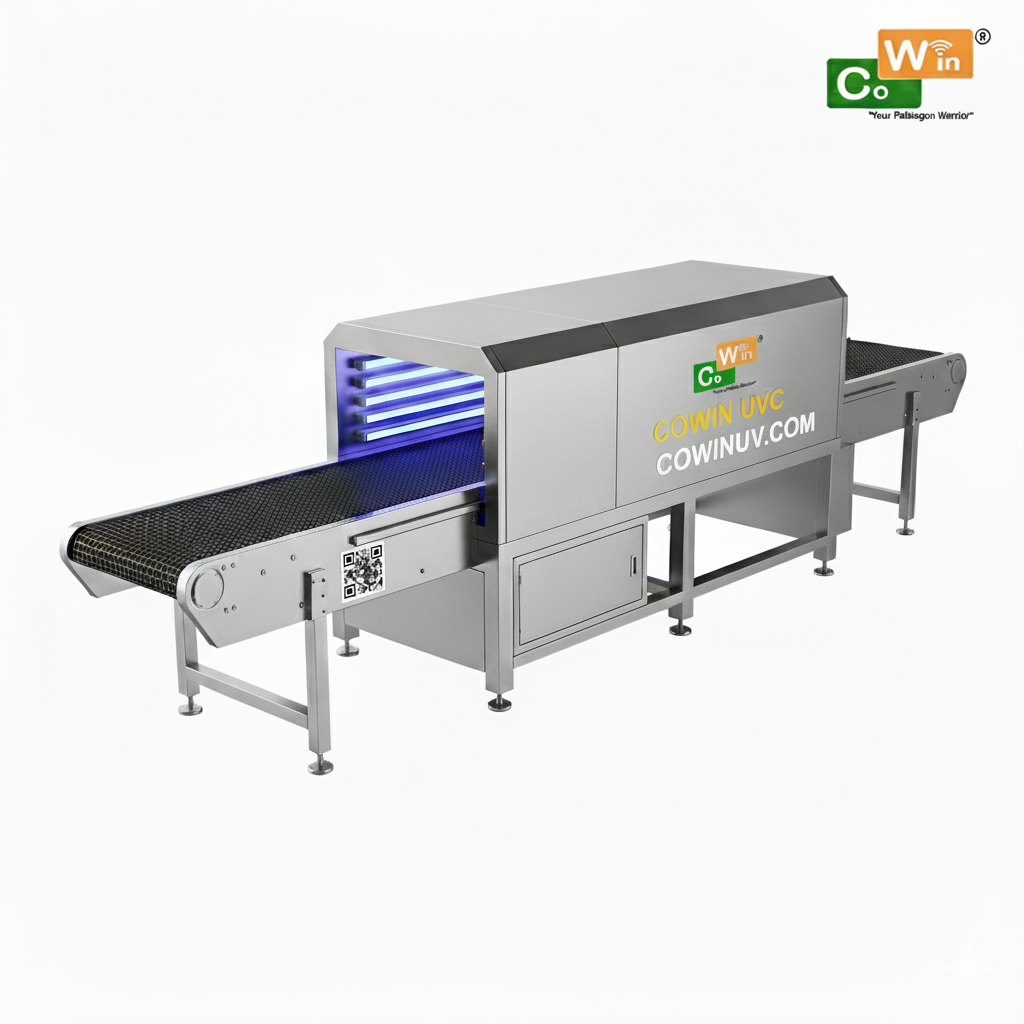

UVC Chain Conveyor Sterilization System

Overview:

A robust UVC conveyor system with stainless steel 304 chain design for heavy-duty industrial sterilization. Built to withstand high loads and demanding environments.

Technical Specifications:

Material: SS304 frame and chain conveyor
UV Source: 254 nm high-output UVC lamps
Sterilization Intensity: 50–80 mJ/cm² (customizable)
Load Capacity: Up to 200 kg per meter
Chain Speed: 1 – 20 m/min (VFD controlled)
Power Supply: 415V, 3-phase, 50Hz
Dimensions: Customizable for product size and throughput
Safety: Full shielding, interlocks, ozone-free UVC

Use Cases:

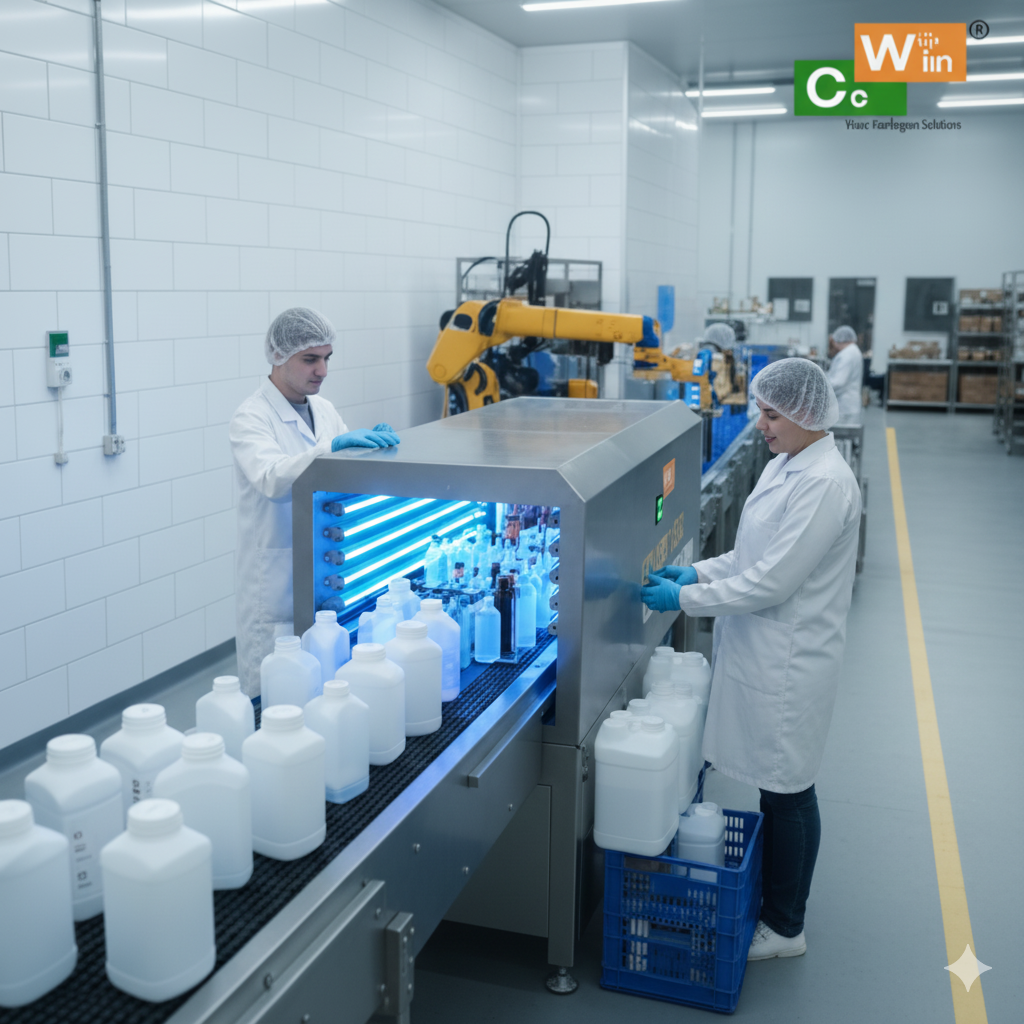

Pharma blister packs, trays, vials

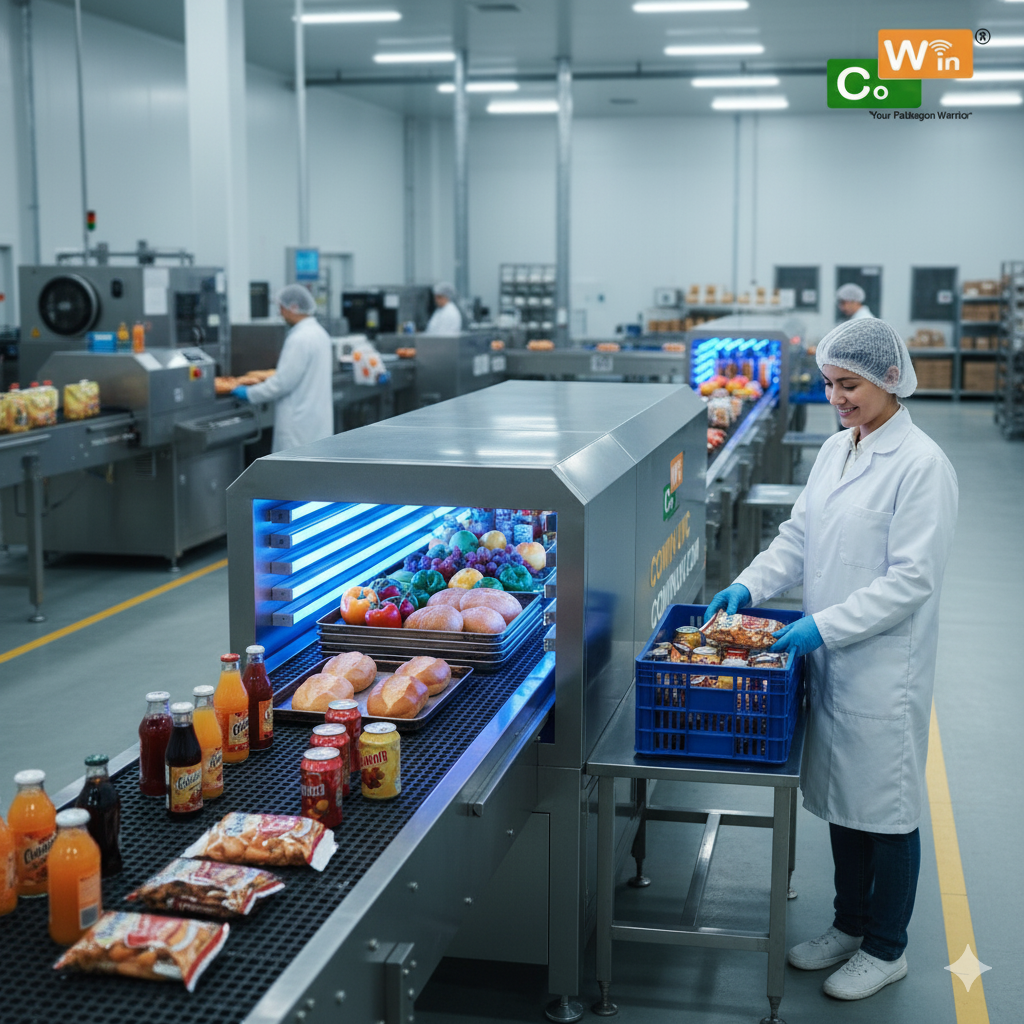

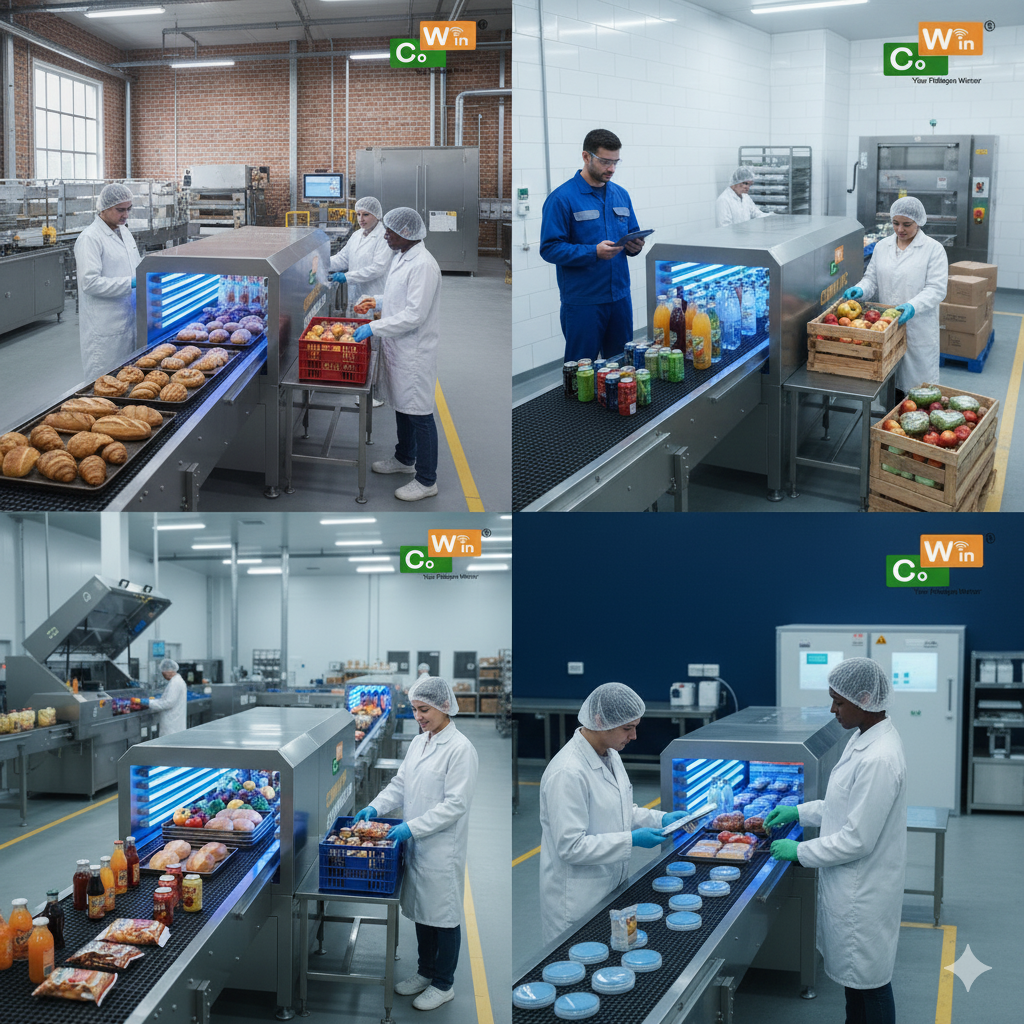

Bakery trays, food baskets, metal molds

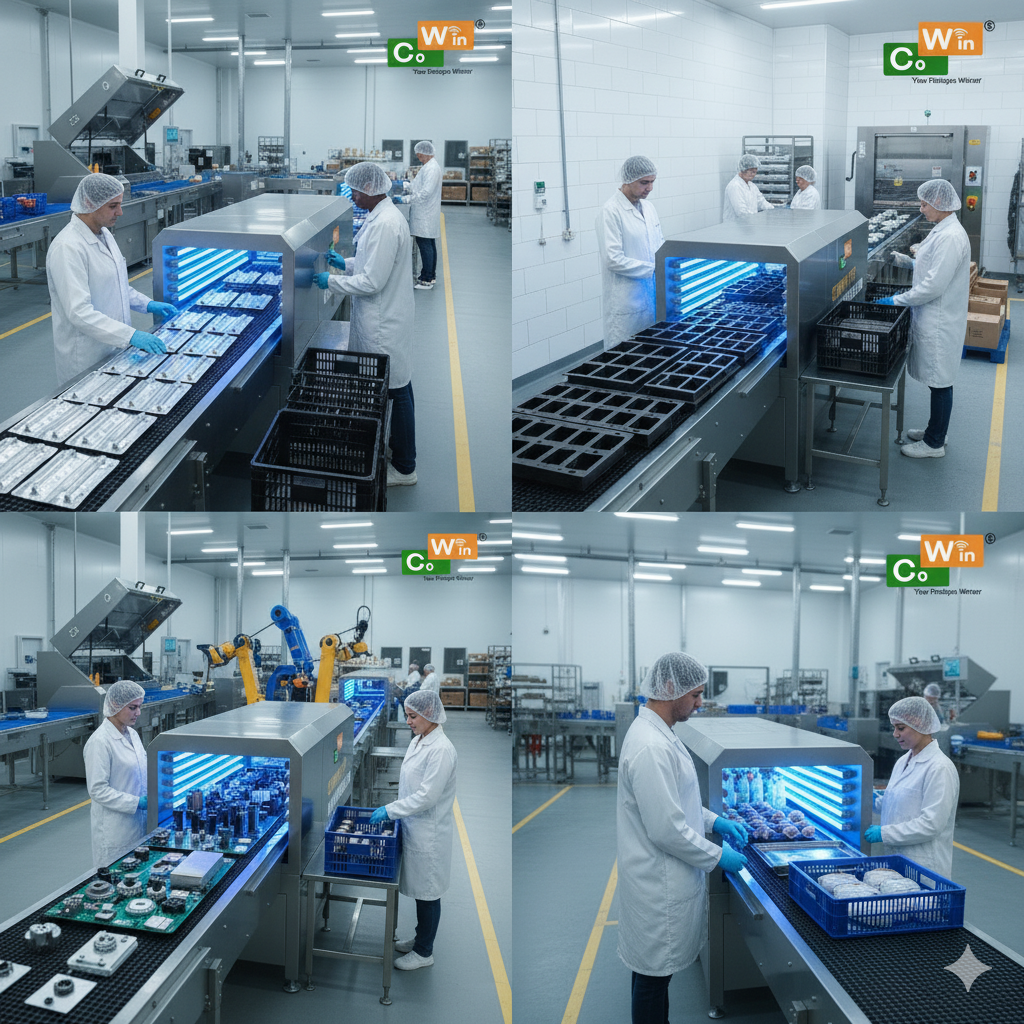

Industrial components requiring sterile handling

Efficacy:

99.9% microbial reduction on complex surfaces
Resistant to moisture and cleaning agents

Customization Options:

Variable chain pitch & width
Modular UVC chamber sections
Cleanroom-compatible design

🏭 Applications: Heavy-duty industrial use

⚡ Sterilization: 50–80 mJ/cm²

🚀 Speed: 1–20 m/min

📦 Load: Up to 200 kg/m

🛡️ Safety: Ozone-free UV + Interlocks

⚙️ Customization: Chain pitch, modular chamber

Disinfection Process

🚚 Transport: Products move through the UV-C tunnel on a conveyor belt at a controlled speed.
💡 UV-C Tubes: High-efficiency UV-C tubes (254 nm) disinfect products.
🧬 DNA Inactivation: The wavelength alters the DNA of microorganisms, preventing reproduction.
✅ Result: Bacteria & viruses are destroyed → products exit in microbiologically safe condition.

Degree of Radiation

UV-C Tunnel – 360° Disinfection

✅ Tubes installed on all sides of the tunnel.
⚡ Complete 360° coverage of the product surface.
⏱️ Microorganisms destroyed within seconds.

UV-C Cover – Top/Partial Disinfection

🌟 Designed for cases where 360° disinfection is not required.
💡 Tubes irradiate from front, back, and top.
⚙️ Cost-effective alternative for suitable applications.

Adaptation to Products

Thanks to the modular design, UV-C systems can be precisely adapted to different requirements:

🎯 Disinfection Level – adjust intensity as per microbial load.
⏩ Process Speed – optimized for throughput.
📏 Bandwidth – conveyor width customizable.
📐 Passage Height – height adjusted for product size.
🔌 Power – scalable UV-C performance.
